Acoustic Pixel
Residential · Media Walls

Bespoke media walls, designed and installed across the UK.

Hidden speakers, ambient lighting, concealed cabling. Configure your own from £2,600, or have us design one around your room.

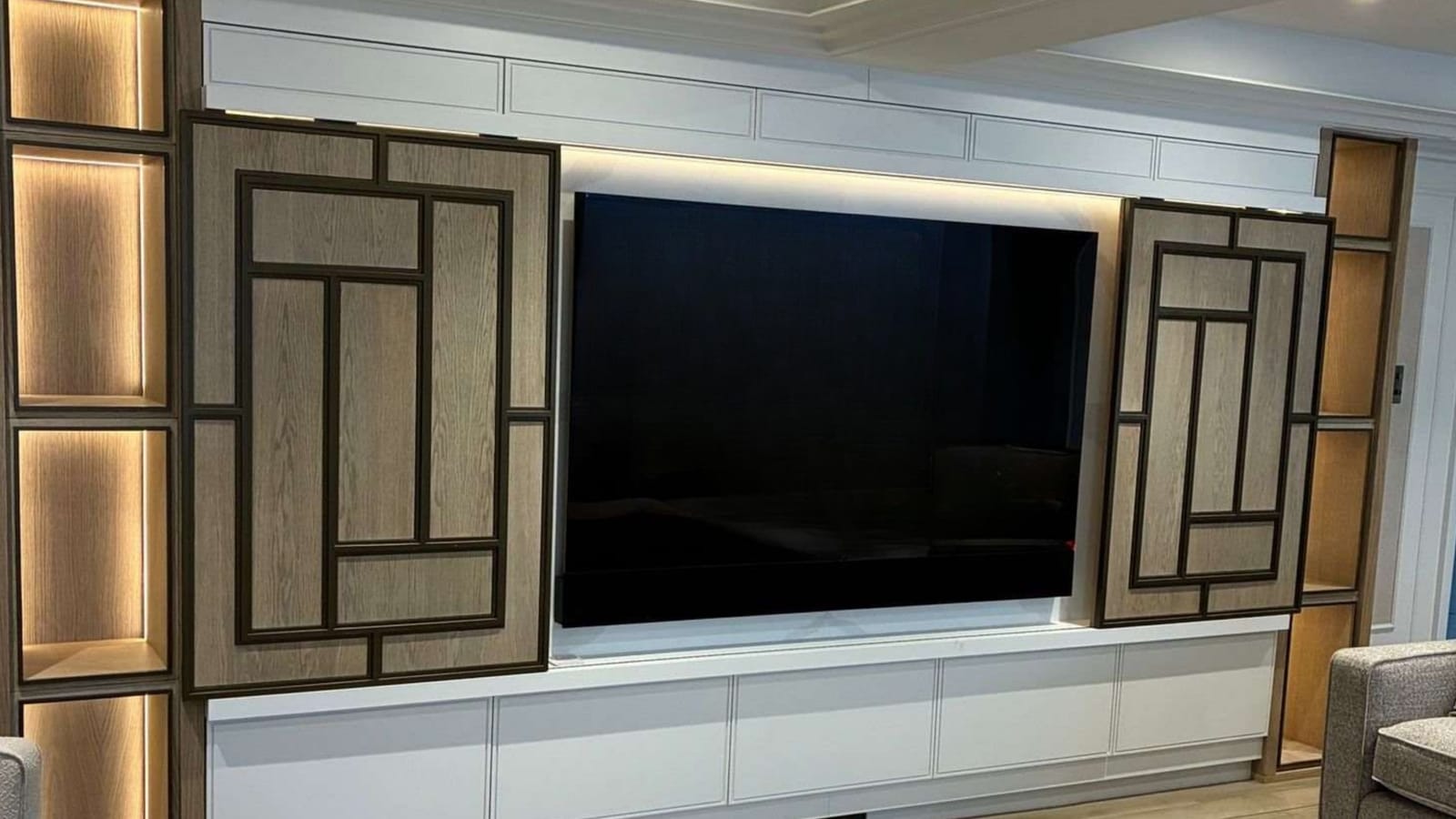

[ hero: finished media wall, TV centred, ambient backlight glow ]
Two routes in

Two ways to start your project.

Some clients know what they want and prefer to start with a price. Others want us to scope the room first. Both routes land in the same place: a designed, installed, integrated media wall.

Productised · Configurable

The Luxe Media Wall

A floating bespoke media wall, configurable to your room. Width, height, TV size, finish, fabric, audio and lighting, all selected through our configurator, priced transparently and installed in two to three weeks.

From
£2,600
Typical
£3,500 to £5,500

Includes VAT and installation. TV not included.

Fully Bespoke

Bespoke Media Walls

Designed end to end alongside your architect, interior designer or joiner. Wall-spanning installations, recessed walls, mixed materials, integrated projection, hidden subwoofers. The AV brief leads; the joinery follows.

From
£6,000
Typical
£8,000 to £15,000+

Scope varies. Quoted per project after a site visit.

Interactive tool

Design your Luxe Media Wall.

Set the dimensions, pick the TV size, choose your finish and audio system. Get an indicative price in under a minute. A formal quote follows a site visit.

PREVIEW
3.20m × 2.0m · 75" TV · Graphite Acacia
[ stylised, see live configurator for accurate render ]
Configuration
  • Wall width3.20 m
  • Wall height2.00 m
  • TV size75″
  • Edge finishSheffield Acacia
  • FabricCamira Cara Lerwick
  • AudioHidden 2.0
  • RGBW lightingIncluded
Indicative total £4,820

Preview only. The live configurator lets you adjust wall dimensions, choose from eight edge finishes, twelve fabric colours, three audio configurations, and ambient lighting options.

Joinery vs integration

What a joiner can't build alone.

Building a box that a TV mounts into is joinery. Building one that delivers cinema-quality sound, hides every cable, vents the heat, controls the lights and runs from a single app: that's integration. Six things separate ours from a joiner-led build.

01

Speakers you don't see.

In-wall speakers from Sonance, M&K Sound or Amina sit flush behind acoustic fabric. The wall becomes the speaker, not a thing with speakers attached.

02

Cinematic bass, no black box.

Concealed subwoofer placement in the lower compartment or behind a fabric grille. The bass is there; the box isn't.

03

Every cable hidden.

Concealed runs from the TV recess through to the source rack. Power, HDMI, network, speaker: all routed inside the wall, not behind it.

04

Ventilation that protects the kit.

Active and passive ventilation engineered into the joinery. Most enclosed media walls trap heat: TVs throttle and AV gear shortens its life. Ours doesn't.

05

Ambient lighting, colour-controlled.

RGBW lighting at the ceiling and floor gaps. App-controlled, scene-based, dimmable. Soft warm wash or cinema accent.

06

One app, every input.

TV, audio, lighting, sources: controlled from a single app, keypad or voice. No three remotes, no juggling.

How we design

Four details we engineer into every media wall.

The small decisions that separate a media wall you love in five years from one you regret in two. We handle all four at design stage, before the joinery starts, before a TV is ordered, before any cable is run.

01

We size the TV to your viewing distance.

An 85" TV doesn't belong on a 4m wall if your sofa sits 2.8m back, you'll be turning your head to follow the picture. We use THX viewing-angle guidance to specify the right TV size for the room, not the right TV size for the wall.

02

We build the wall around the audio.

A 2.0 system needs 200mm of cavity. A 3.1 surround setup needs 300mm and a concealed subwoofer position. Audio gets specified at design stage, never retrofitted after, because that means a second joinery visit at your cost.

03

We engineer the ventilation in from the start.

Modern OLED and QD-OLED TVs throttle above 35°C, and most enclosed media wall recesses hit that within 90 minutes of viewing. Every one of our walls includes active or passive ventilation. It's the difference between a TV that lasts ten years and one that fades in three.

04

We plan the source rack as part of the build.

Sky box, Apple TV, gaming console, AV receiver: they all need ventilation, signal access and somewhere a remote can reach them. We design the source-rack location at the same time as the wall. Hidden, ventilated, IR-routed, accessible.

Frequently asked

Media walls: quick answers.

How much does a media wall cost in the UK?
Our Luxe Media Wall starts at £2,600 for a 2m × 1.8m configuration without audio, and typically lands at £3,500 to £5,500 once audio, lighting and finish upgrades are added. Fully bespoke media walls (wall-spanning installations, projection, 3.1 audio, mixed materials) start at around £6,000 and run to £15,000+ depending on scope. All prices include VAT and installation.
How long does installation take?
Two to three weeks from order for a Luxe Media Wall, including a one-day on-site installation. Fully bespoke projects run six to twelve weeks depending on joinery complexity and material lead times.
Do you install in Middlesbrough, Preston, Manchester and across the UK?
Yes. We're based in Middlesbrough and install across the UK. Manchester, Leeds, Newcastle, Preston, Sheffield, Yorkshire and the North-East are regular project regions, and we install in London, the South-East and the Midlands too. Travel is part of the project quotation, transparent from the start.
Is the TV included in the price?
No. The TV is supplied by you, and we'll specify the right size for your viewing distance. Supplying your own TV usually saves money. Most clients want a Samsung Frame, LG OLED or Sony Bravia, and high-street prices are competitive. We can source the TV for you if preferred.
Can you work alongside our interior designer or architect?
Yes. Fully bespoke media walls are typically designed in collaboration with an interior designer, architect or main contractor. We provide the AV brief, the wall cavity specification, the ventilation requirements and the cable schedule; the design partner leads the visual treatment. We also have a Partner Programme for designers and architects who specify our work repeatedly.
What's the difference between a media wall and a TV mount?
A TV mount holds a TV on a wall. A media wall is designed joinery that houses the TV, hides every cable, conceals the audio system, ventilates the kit, and integrates ambient lighting. The functional gap is the same as the gap between a fitted kitchen and a freestanding cupboard. Both work, but they're not the same thing.
Three routes in

Configure a wall, or have us design one.

Two ways in. The configurator gives you an indicative price in under a minute for a Luxe Media Wall. For anything more bespoke, the fastest route is a consultation, at your home, our showroom, or with your architect.

Acoustic Pixel HQ
Unit 7, Mandale Park
Cannon Street
Middlesbrough, TS1 5AJ
